Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications

Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications
Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications

大画像 :  Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications

商品の詳細:
起源の場所: 中国
ブランド名: Best
証明: GB/T19001-2016/ISO9001:2015
モデル番号: AQ,BQ,NQ,NQ3,HQ,HQ3,PQ,PQ3
お支払配送条件:
最小注文数量: 5
価格: $110-$250
パッケージの詳細: 箱,複合板ケース,またはご希望に
受渡し時間: 3~10日
供給の能力: 10000/月

Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications

説明
製品名: 浸透したダイヤモンドコアビット 形: 円筒形
カッタータイプ: 浸透したダイヤモンド 材料: 炭化物、ダイヤモンド
表面仕上げ: スムーズ ねじの種類: API,メトリックなど
繋がり: 男性/女性 応用: 鉱業,地質調査
MOQ: 10個入り 支払い期間: T/T、L/C
表面処理: 砂を吹き付けているポーランド語 保証: 1年

Wear Resistance Impregnated Diamond Core Bit From Wuxi Manufacturer



Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Applications: Mixed, fractured or faulted geologies that would quickly dull solid diamond or PDC bits. Provides longrun times before resharpening required.
Advantages: Less expensive than other designs; tolerates varied lithologies and impact; maintains cutting edges longer than natural diamond bits.



Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications 0



Core bit choice chart:



Rock Type
Rock Hardness

Abrasiveness

Hardness NO.

Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite,
Coal,Argillite,Volcanics,Sandly Pebble

Soft

Medium
BST 1/3

Sandstone,Lithoid Limestone, Limonite

Medium Soft

Very High
BST 3/5

Medium Hard Sandstone,Hard Shale,
Hard Ash Stone,Dolomitic,Marble,Hard Schist,
Hard Streak Stone,Siltstone,Andestite

Medium

High
BST 5/7
Peridotite,Gneiss,Limonite
Medium Hard

Medium High
BST 7/9

Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite,
Grandiorite,Granite,Basalt,Hard Streak Stone

Hard

Medium To Low
BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite Very Hard Medium To Low BST 11

Silicious,Hard Sandstone,Rhyolite,
Dense Quartzite,Ironstone,Taconite,Jasperite,Chert

Utral Hard

Low
BST 14



Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications 1

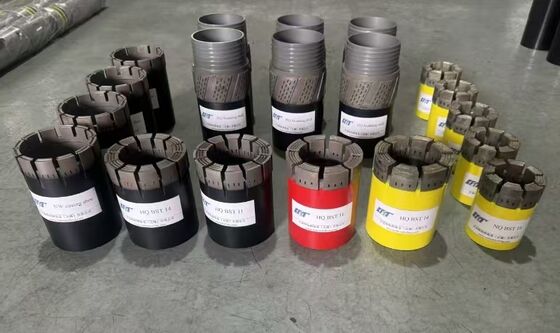

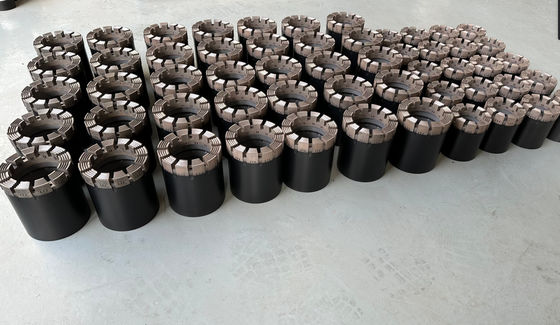

Detailed photos:





Packing:



Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications 2   Impregnated Diamond Core Bit Featuring Synthetic Diamonds Embedded in Metal Alloy Matrix for Durable and Rock Cutting Applications 3





Situated in Wuxi City which is renowned as geological drilling equipment manufacturing cernter of China,Best Drilling has been specializing in geological equipment since 2008. and now it has become one of the leading manufacturers in this industry.

Best Drilling people sincerely look forward to working with you in the near future.
